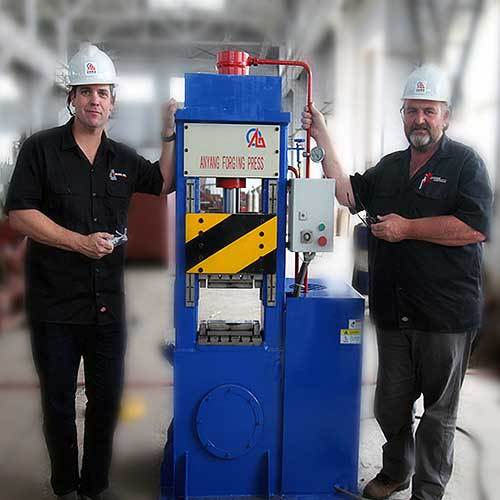

Blacksmith Hydraulic Press
111 USD ($)/Set
Product Details:
X
Price And Quantity
- 111 USD ($)/Set
- 1 Set
Trade Information
- 50 Set Per Month
- 1 Months
Product Description
Anyang forging press has been making forging machine since 1956. The forging press sizes have ranged from 800 Ton to 8000 Ton and are found in many automotive and industrial forging companies around the world. In 2017, we made the decision to utilize their knowledge of presses and machining capability to make a series of presses aimed at the blacksmith, bladesmith, and the small industrial sector. Sizes will range from 25 Ton (Metric) or 27.5 Ton (Imperial) to a 50, 75, and 100 Ton model.
Advantages of the Anyang hydraulic press are:
- High Speed.
- Quiet operation.
- Enclosed hydraulics, steel hydraulic lines, no rubber hoses to break or catch fire. A safer press.
- Large T slotted upper and lower plattens. Easier to build specialized tooling.
- Timer to minimize up travel time for faster, efficient forging.
- Long 30mm stroke.
- Side access for pressing longer pieces.
- Responsive foot peddle.
- Heavy High strength industrial design
Technical Specifications
| Item | Y04-16 | Y04-25 | Y04-30 | Y04-50 | |
| Normal force | 16T | 25T | 30T | 50T | |
| Working speed(25MPa) | 8mm/s | 8mm/s | 7mm/s | 8.5mm/s | |
| Stroke speed | down | 35mm/s | 52mm/s | 47mm/s | 50mm/s |
| up | 68mm/s | 90mm/s | 85mm/s | 120mm/s | |
| Maximum working arealong * high | 300mm400mm | 380mm480mm | 430mm | ||
| Maximum stroke | 300mm | 350mm | 300mm | ||
| Dimension of worktable long *width | 300mm200mm | 340mm250mm | 380mm300mm | ||
| worktable height from the ground | 710 mm | 790 mm | 920mm | ||
| Press the cylinder | Cylinder diameter90/63,stroke300 | Cylinder diameter115/80,stroke300 | Cylinder diameter125/90,stroke350 | Cylinder diameter160/120,stroke300 | |
| Rated system pressure | 25MPa | ||||
| Hydraulic system using medium | Anti-wear hydraulic oil YB-N46 | ||||
