10 ton closed die forging hammer supplier

Get a Price/Quote

MOQ : 1 Set

10 ton closed die forging hammer supplier Specification

Surface Treatment
Power Coating, Painting, Electrophoresis, zinc Plating, Black Oxidation, Mill Finish, Sand Blasting, Galvanized, Anodization

Product Type
Forged Equipment

Material
Steel

Technology
Forging

Application
Auto Parts

Color
Blue

10 ton closed die forging hammer supplier Trade Information

Minimum Order Quantity
1 Set

FOB Port
Qingdao port, Shanghai port

Supply Ability
5 Sets Per Month

Delivery Time
60 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden cases

Main Export Market(s)
Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, North America

Main Domestic Market
All India

Certifications
CE ISO

About 10 ton closed die forging hammer supplier

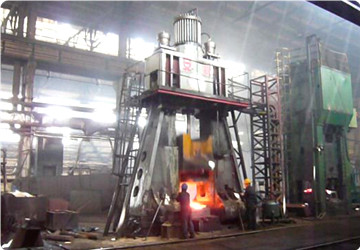

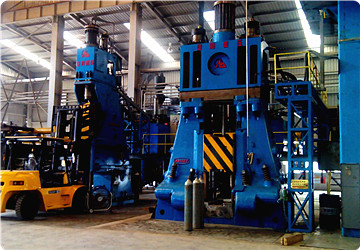

Hydraulic Closed Die Forging Hammer Fully Hydraulic Closed Die Forging Hammer

Fully hydraulic closed die forging hammer is driven by hydraulic oil without nitrogen gas, is mainly applied in many kinds of closed die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings and industrial forgings

Hydraulic closed die forging hammer Introduction

C86Y series hydraulic die forging hammer is fully hydraulic driven without gas. Fully hydraulic closed die forging hammer is used for closed / impression die forging.

Technical characteristics

Highly integrated fully hydraulic control system, low carbon, no leakage, more reliable.
Large flow hitting valve [patent design], sensitive response, high frequency.
Built-in secondary hydraulic cushion device[ patent design], realized flexible upper limit, no top hitting.
Tup return fast, die contact time is short and will return at once, die life is longer.
'X' type guide rail, it can do multi-cavity forging, high forging precision ,long hammer rod life.
Automatic emergency anti hammer rod breaking cover, anti oil leak protection and safety.
Multilevel security protection hydraulic device, system stability, high safety.
Lead control operate valve, reliable control, operating force is small, low labor intensity.
Traditional hand operated model, the original operator can operate the hammer easily.

Fully Hydraulic Closed Die Forging Hammer Parameter

Item	Unit	C86Y-25	C86Y-50	C86Y-75	C86Y-125	C86Y-200	C86Y-250	C86Y-400	C86Y-450
Item	Unit	(1T)	(2T)	(3T)	(5T)	(8T)	(10T)	(16T)	(18T)
Below energy	KJ	25	50	75	125	200	250	400	450
Ram Weight	kg	1000	2000	3000	5000	8000	10000	16000	18000
Max. stroke	mm	1000	1200	1250	1300	1350	1400	1500	1500
Hit frequency	min-1	55-70	55-70	55-70	55-65	55-65	50-60	50-55	45-50
Motor power	kw	55-1	55-2	55-3	55-4	75-5	75-6	75-8	75-10
Min height of close die (without dovetail )	mm	220	260	350	400	430	450	500	500
Outside size	mm	2400	3000	3200	3700	4300	4400	4500	4500
		1400	1700	1800	2100	2700	2700	2600	2800
		7000	7500	8000	8200	8800	9000	9800	10000
