Electric Screw Press Electric Screw Press Electric Screw Press Electric Screw Press Electric Screw Press
Electric Screw Press
Electric Screw Press Electric Screw Press Electric Screw Press Electric Screw Press

Electric Screw Press

260000 USD ($)/Set

Product Details:

  • Product Type Forged Equipment
  • Material Steel
  • Technology Forging
  • Color Gray
  • Click to View more

Electric Screw Press Price And Quantity

  • 260000 USD ($)/Set
  • 1 Set

Electric Screw Press Product Specifications

  • Gray
  • Forged Equipment
  • Forging
  • Steel

Electric Screw Press Trade Information

  • Tianjin port, Shanghai port
  • 5 Set Per Month
  • 60 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Wooden case for Electric screw press for closed die forging
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • CE certification

Product Description

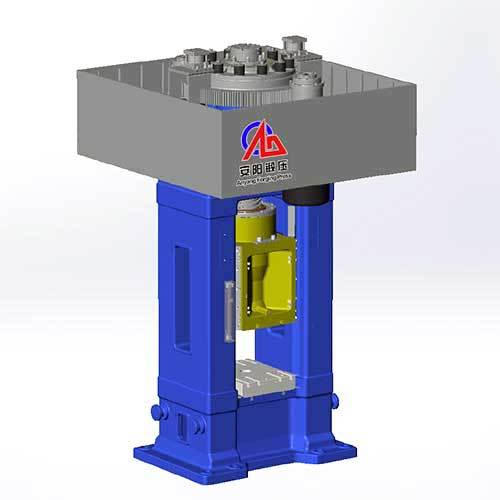

Introduction of J58K series electric screw press machine

Electric screw press is a kind of forging machine with strong applicability, have dual nature of press and forging hammer. Simple structure, small volume, short drive system, convenient operation, safe running and low maintenance. Electric screw press is suitable for all kinds of precision forging, finishing, coining, embossing and leveling etc process. The strike energy can be set accurately according to the molding requirements, can reduce the time of stress and die touching hot piece, thus prolong the die life. The frame is rigid, good and guide ability, strong bias load resisting ability, can be used in multi station forging, it is a energy-saving and environmental protection forging press.

Features of J58K series electric screw press

1. Using AC frequency conversion direct toque control technology servo driving system, famous brand converter, with advanced technology.

2. The strike energy can be set precisely, high forming precision, suitable for various of non-ferrous metal precision forging.

3. Easy to realize programming forging and automation.

4. Bottom dead point is not fixed, unnecessary to adjust the die height, forging dies stuck will not happen.

5. Due to the striking energy is precisely controlled, so the service life of forging die is extended greatly.

6. The main frame structure is simple, easy to operate and maintenance.

7. The moving parts with low noise, low vibration, satisfy environmental protection, low foundation building cost.

8. Relatively short stroke, stable energy output, high repeatable precision.

Main technical parameter of J58K series electric screw press

  • Model: J58K-630
  • Nominal force: 6300 KN
  • Max. Working force: 10000 KN
  • Max. Forging energy: 80 KJ
  • Slide stroke: 450 mm
  • Stroke frequency: 19/min
  • Min. Enclose height: 720 mm
  • Thickness of sow block: 160 mm
  • Dimension of worktable: 820*900 mm


Q: How long is your delivery time?

A: Generally it is 30-60 days, if the goods are in stock,  it will be 20-35 days. If the goods are not in stock, it is according to quantity.

Q: Are you trading company or manufacturer?

A: We are factory.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:
