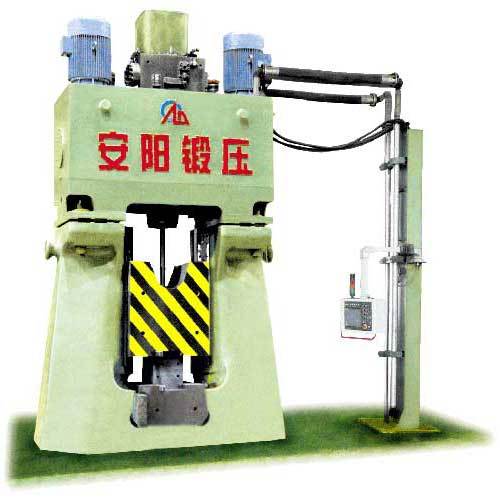

The working chamber of C86 series hydraulic-gas forging hammer has upper rod piston of nitrogen gas and the lower is hydraulic oil. It doesnt need motor power and the forging relies on the ram weight, making it energy efficient and used to forge all kinds of close die forgings.
Technical Feature of hydraulic-gas hammer
Hydraulic-gas closed die forging hammer parameters
Item | Unit | C86-25 | C86-50 | C86-75 | C86-125 | C86-150 | C86-200 | C86-250 | C86-400 |
Max. hitting energy | KJ | 25 | 50 | 75 | 125 | 150 | 200 | 250 | 400 |
Weight of falling parts | Kg | 1500 | 2500 | 3500 | 6000 | 7000 | 8600 | 10500 | 16300 |
Max. stroke | mm | 1000 | 1200 | 1250 | 1300 | 1350 | 1350 | 1400 | 1500 |
Hit frequency | /min | 5s5 below | 5s5 below | 5s5 below | 6s5 below | 6s5 below | 7s5 below | 8s5 below | 8s5 below |
Main motor power | kw | 45*2 | 45*3 | 55*3 | 55*4 | 55*5 | 55*5 | 55*6 | 75*6 |
Guide space | mm | 540 | 600 | 700 | 740 | 800 | 900 | 1000 | 1200 |
Min. die height | mm | 220 | 260 | 350 | 400 | 430 | 430 | 450 | 500 |
Machine outside size | mm | 2400* 1400* 6000 | 3000* 1700* 6500 | 3200* 1800* 7100 | 3700* 2100* 8600 | 3800* 2300* 9200 | 4300* 2700* 11200 | 4400* 2700* 12000 | 4500* 2600* 13100 |
![]() |
