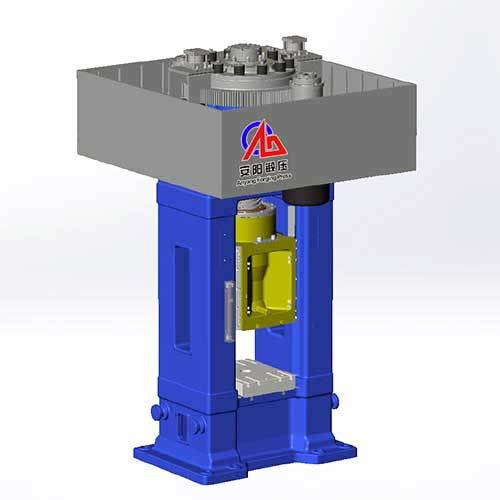

Introduction of electric screw press
Electric screw press is a forging machine with many applications, having the dual nature of press and forging hammer. Structure is simple, small volume, short drive system, operation is convenient, running is safe and low maintenance. Electric screw press is suitable for all kinds of precision forging, finishing, coining ,embossing and leveling etc process.The strike energy can be set accurately according to the die precision, can reduce the time of mechanical stress and the amount off time the hot work piece is in contact with the die, thus prolonging the die life.The frame is rigid, good guide ability, strong bias load resisting ability, can be used in multi-die forging, it is a energy-saving and environmental protection forging press.
Electric screw forging press working principle
Slide moves up & down driven by motor through pinion, gearwheel and screw, gearwheel has enough inertia act as flywheel. After input start signal, motor from stationary state drives slide accelerate downwards through pinion and gearwheel, motor stop accelerating after reaching required speed by pre-set blow energy, Kinetic energy stored by gearwheel works, e.g. forming work. At the same time, motor immediately drives gearwheel to reversal rotation, when reaches a certain point, motor will start to brake, drives slide back to pre-set position. Since brake is by motor when slide is in return stroke, mechanical brake only works when slide is close to up dead point, brake material is not easy to wear, no need frequent change.
Futures of screw forging press
Advantages of Anyang screw forging press design
Our electric screw press adopts gear drive mode, features of this drive mode are: adopts special motor, high RPM, less torque, different tonnage press with different power special motor, easy to replace when motor breaks down, easy & simple maintenance, motor performance is not affected when screw guide bushing is worn out., efficiency of electric screw press improved a lot with continuous improvements & innovations in many years, this gradually established our leading position in electric screw press market.
Automation electric screw press forging line
The electric screw press as the key equipment, Anyang forging press company can supply the forging production line for the customers, include cutting equipment, heating equipment, preform forging equipment, forging robots, Trimming equipment and integrated system etc.
Forgings forged on screw press
Electric screw press can forge Claw Pole, connecting rod, form machinery, spherical hinge, Auto parts forging, control arm, riggings etc precise closed die forgings.
Parameter of electric screw press
